Summary0000750: [mic] pin map
DescriptionHi Sean

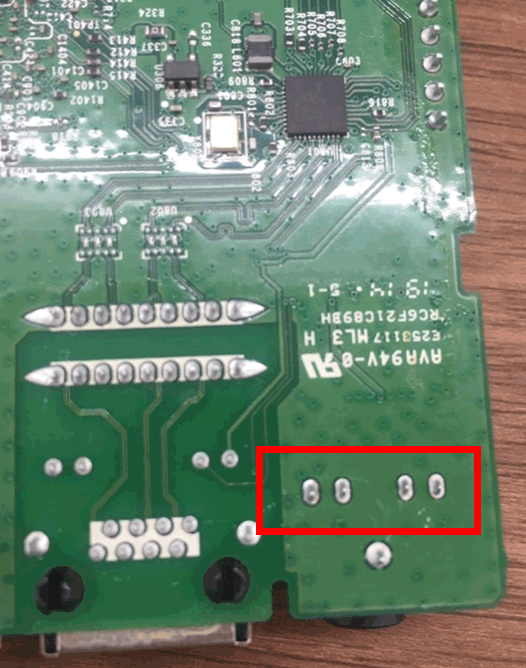

I want to know about Mic phone jack's pin map.
please see the below picture and let me know the name of pin (red box)
TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List (ALTech) SH Son

Activities

(ALTech) SB Park

2019-07-03 16:54

developer


(HW) Sean Chiang

2019-07-04 13:00

developer   ~0002824

Hi Jim,

Please check it and get back to SB this afternoon.

(HW) Jim Liang

2019-07-04 13:59

developer   ~0002826

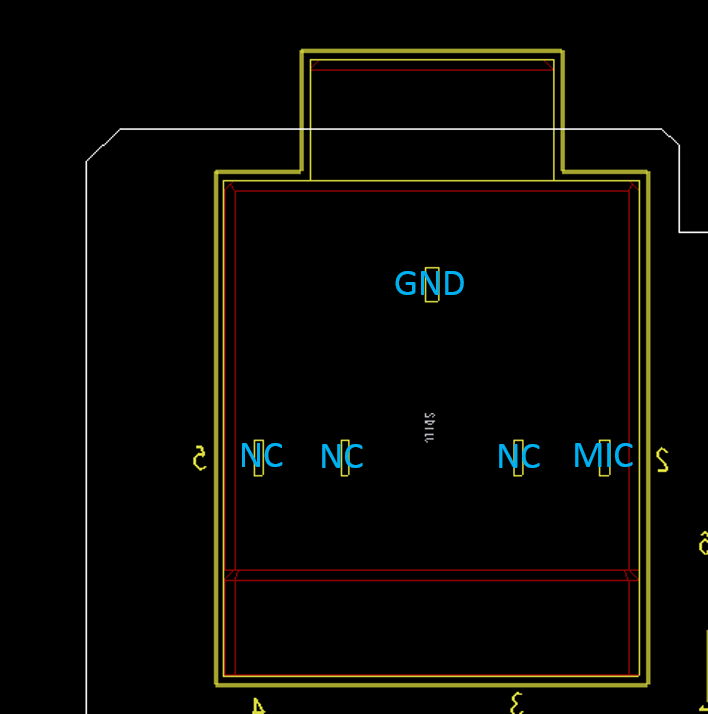

Hi SB
    Please see the picture

(ALTech) SB Park

2019-07-04 14:37

developer   ~0002827

Hi Jim, Sean
Thank you very much
